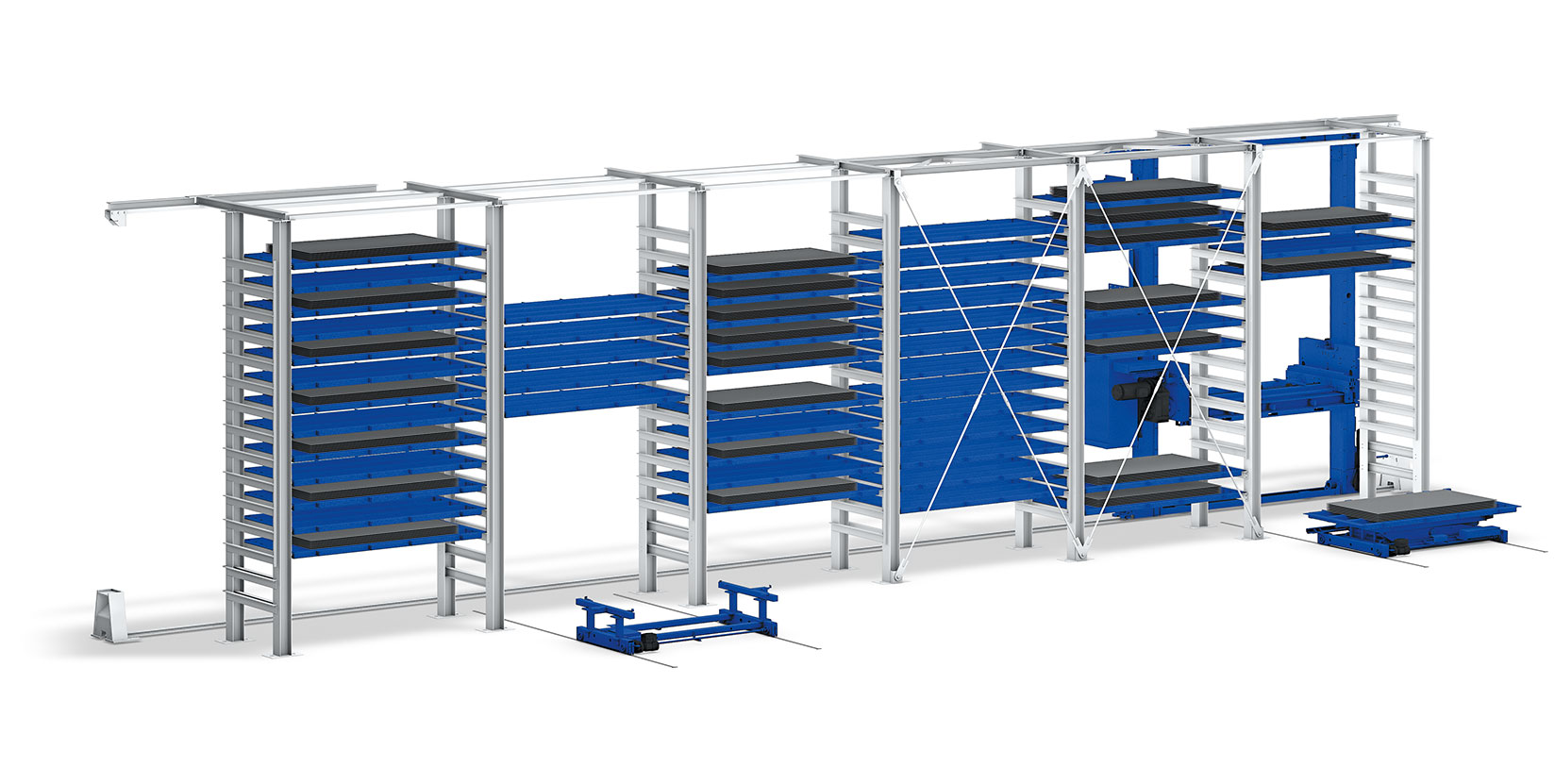

Picture: STOPA UNIVERSAL
Technical Data
Application examples
Your contact person

Variable loading heights and the design for high payloads make this storage system the ideal solution for all requirements of the processing industry.

With its modular construction, needs-based sizing, multiple expansion options, and the possibility of direct integration with processing machines, STOPA UNIVERSAL optimally adapts to your requirements.

The system combines large storage capacities with efficient space utilization. STOPA UNIVERSAL is available in single-row and double-row versions with heights of up to 25 meters. Gain production space by cost-effectively moving your storage inventory upwards or choosing a building-supporting version.

BENEFITS AT A GLANCE

  • Individually configurable large-scale storage at an attractive price-performance ratio.
  • The perfect interface for material storage and provision for processing.
  • Low space requirement – storage areas grow upwards.
  • Automatic connection to processing machines possible.
  • 360° connection of stations possible: long side, short side or in combination.

  • Automatic and continuous inventory control through STOPA WAREHOUSE MANAGEMENT SYSTEM.

  • WMS-Basic 4.0 for managing fixed storage locations. Optionally: WMS-Dynamic 4.0 for dynamic storage management, variable loading heights, and automatic connection to processing machines.

  • Optionally available as a building-supporting version.

Product-Highlights and options STOPA UNIVERSAL

Connection to processing machines

For fast commissioning of orders, STOPA UNIVERSAL can be variably connected to processing machines.

Simple and clear control

The STOPA control panel with an intuitive touchscreen interface enables fully automated order processing.

Efficiency increase through dynamic storage management

With the intelligent WAREHOUSE MANAGEMENT SYSTEM WMS-Dynamic 4.0, STOPA optimizes the management of storage locations. This enables quick and direct storage of sheets and other goods by specifically targeting the nearest storage location.

Technical Data STOPA UNIVERSAL

Pallet format MF

Dimensions L × B [mm]*
2.500 × 1.250
Permitted load [kg]
3.000
Maximum system height [m]**
20
Maximum lifting speed [m / min]
30
Maximum pulling speed [m / min]
25
Travel speed [n/m]
100, 150, 200

Palett format GF

Dimensions L × B [mm]*
3.048 × 1.524
Permitted load [kg]
3.000
Maximum system height [m]**
20
Maximum lifting speed [m / min]
30
Maximum pulling speed [m / min]
25
Travel speed [n/m]
100, 150, 200

Palett format XF

Dimensions L × B [mm]*
4.064 × 2.032
Permitted load [kg]
3.000 / 5.000
Maximum system height [m]**
20
Maximum lifting speed [m / min]
30
Maximum pulling speed [m / min]
25
Travel speed [n/m]
100, 150, 200

* Special format on request   **Special height on request

APPLICATION EXAMPLES STOPA UNIVERSAL

Pictures

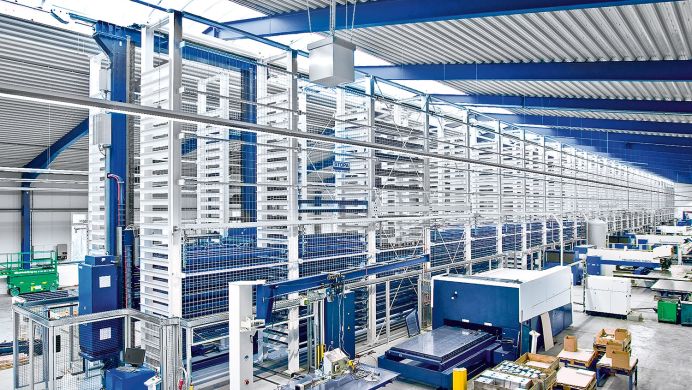

Picture: STOPA UNIVERSAL

STOPA UNIVERSAL

Videos

3D Simulation

STOPA Sales

ASK OUR EXPERT

Are you interested in speaking to a storage system expert?

We’ll help you find the perfect solution for your needs. Please send us an email, give us a call, or fill out the form.

One of our storage system specialists will be in touch with you soon.

Our sales staff
Sales partners worldwide

CONTACT DATA

STOPA Anlagenbau GmbH
Industriestr. 12
77855 Achern-Gamshurst

Tel +49 7841 704-0
Fax +49 7841 704-190
sales@stopa.com

ENQUIRY

Please enable JavaScript in your browser to complete this form.
Adresse
Name

How much is 7+4?

Input fields marked with an asterisk (*) are required to process your request. Further information is voluntary. To process your request, we use the communication channels that you have entered in the contact form (e.g. e-mail, telephone). Further information on the handling of your personal data can be found in our privacy policy.

STOPA CUSTOM-MADE PRODUCTS

STOPA storage systems are predominantly modular and expandable. This enables individual adaptations to almost any situation. In addition, we work with you to develop special solutions for your specific requirements.
enquire

More solutions sheet metal storage

The sheet metal storage systems from STOPA stand for innovation and maximum efficiency in warehouse and production logistics.
Picture: STOPA ECO PLUS

STOPA ECO PLUS

Modular, flexible and expandable at any time
Find out more
Picture: STOPA FLEX

STOPA Flex

Maximum flexibility for efficient material flow
Find out more

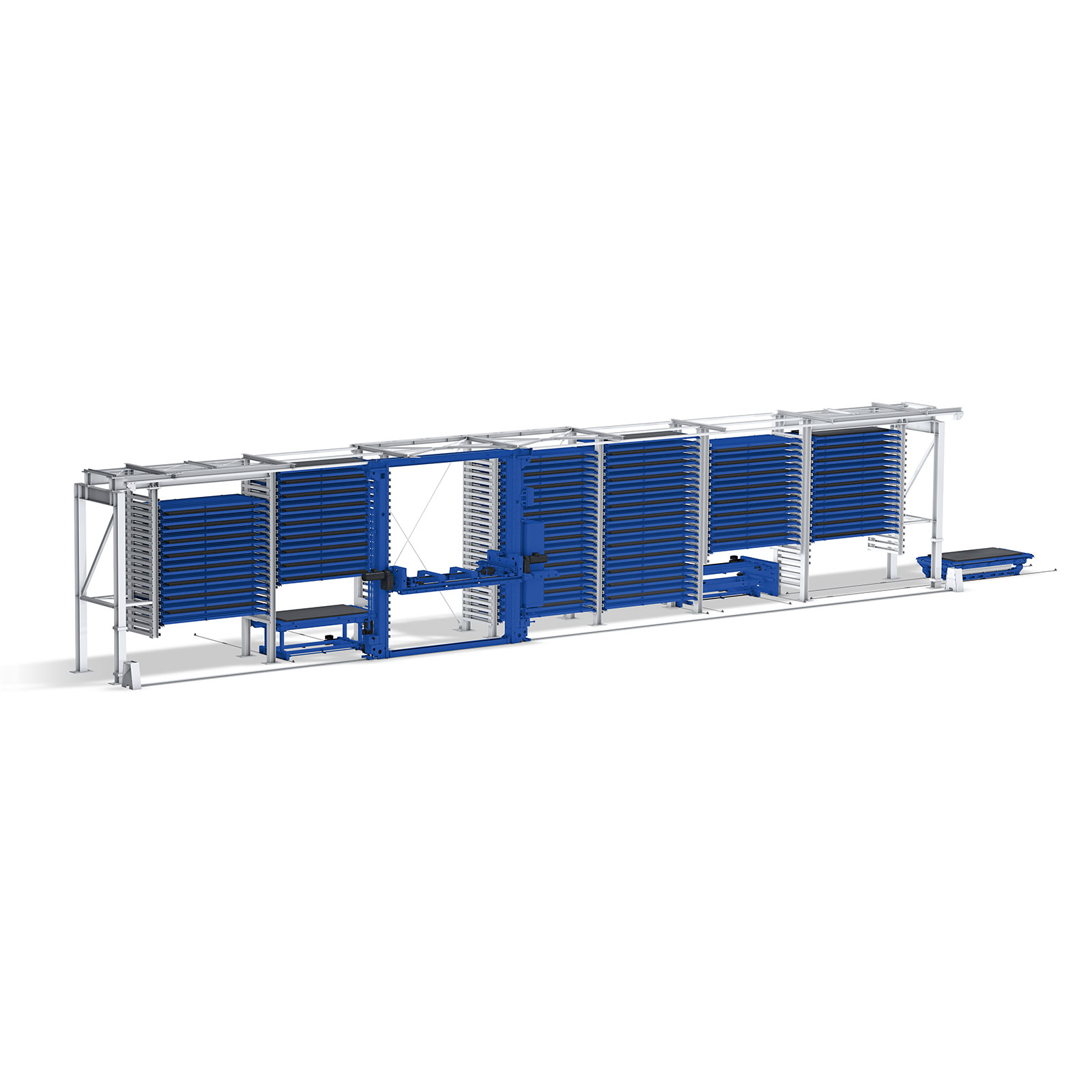

Picture: STOPA Compact Serie
