Create space in your warehouse and boost your productivity

The innovative storage system STOPA ECO PLUS offers you a cost-effective entry into automated storage management and can be expanded as needed. Differently selectable loading heights allow for a division tailored to your requirements – for maximum storage capacities. This flexible system in a compact design offers you versatile possibilities and makes STOPA ECO PLUS, for example, the perfect buffer storage for your operation, as a single-tower or double-tower storage, and easily masters any challenge. With the optional automatic control as an alternative to manual operation, you simplify the handling of the SYSTEM PALLETS.

Discover the cost-effective solution for large and maxi format sheets.

BENEFITS AT A GLANCE

  • Intelligent modular design in single-tower or double-tower version.
  • Extra-fast turnover speeds.
  • Safe handling using pulling and sliding technology on glide rails.
  • Simple control via STOPA control module with an intuitive touchscreen interface.

  • WAREHOUSE MANAGEMENT SYSTEM (WMS-Essential) included as standard.

  • Optionally combinable with chain conveyors, transport carts, or input pedastel.

Product Highlights and options STOPA ECO PLUS

From one to two

In just a few steps from single-tower to double-tower storage. This way, you double your storage capacities.

High operating comfort

WMS-Essential enables simple inventory management. Expandable with WMS-Tower 4.0 if needed.

Automated storage and retrieval

With STOPA ECO PLUS, the storage of sheets and similar goods can be automated. This not only increases the efficiency and quality of your storage management but also reduces costs.

Technical data STOPA ECO Plus

Pallet format GF

Dimensions L × W [mm]
3,048 × 1,524
Permissible load [kg]
1.500 / 3.000
Maximum system height [m]
7,95
Number of pallets single-tower version
maximum 49
Standard loading heights [mm]
50 bis 200
Numbers of loading heights
max. 3
Lifting speed [m/min]
16
Pulling speed [m/min]
14

Pallet format XF

Dimensions L × W [mm]
4.064 × 2.032
Permissible load [kg]
3.000
Maximum system height [m]
7,95
Number of pallets single-tower version
maximum 39
Standard loading heights [mm]
50 bis 200
Numbers of loading heights
max. 3
Lifting speed [m/min]
16
Pulling speed [m/min]
14

APPLICATION EXAMPLES STOPA ECO PLUS

Pictures

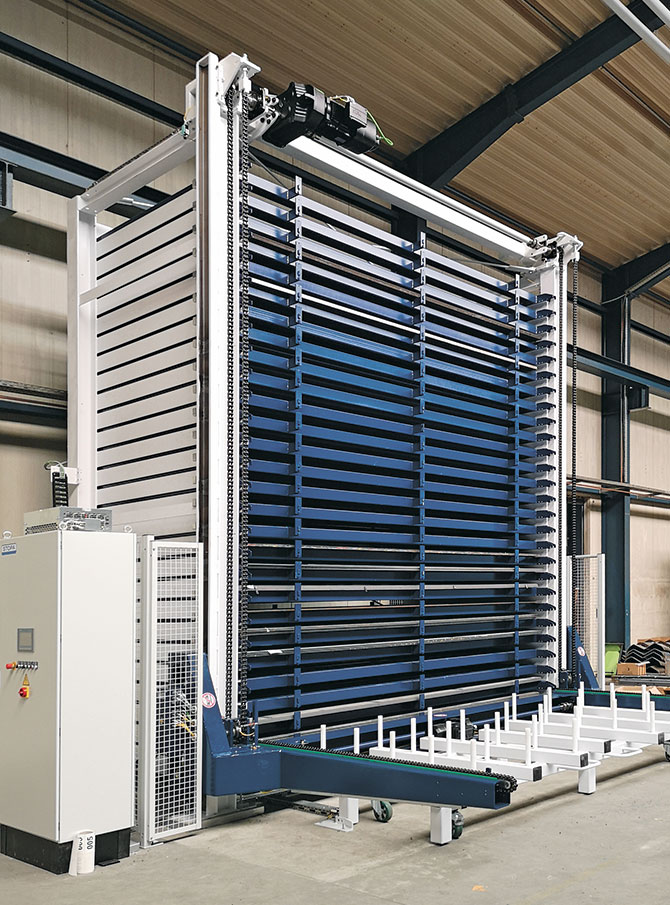

Picture: STOPA ECO PLUS as a single tower

STOPA ECO PLUS single tower

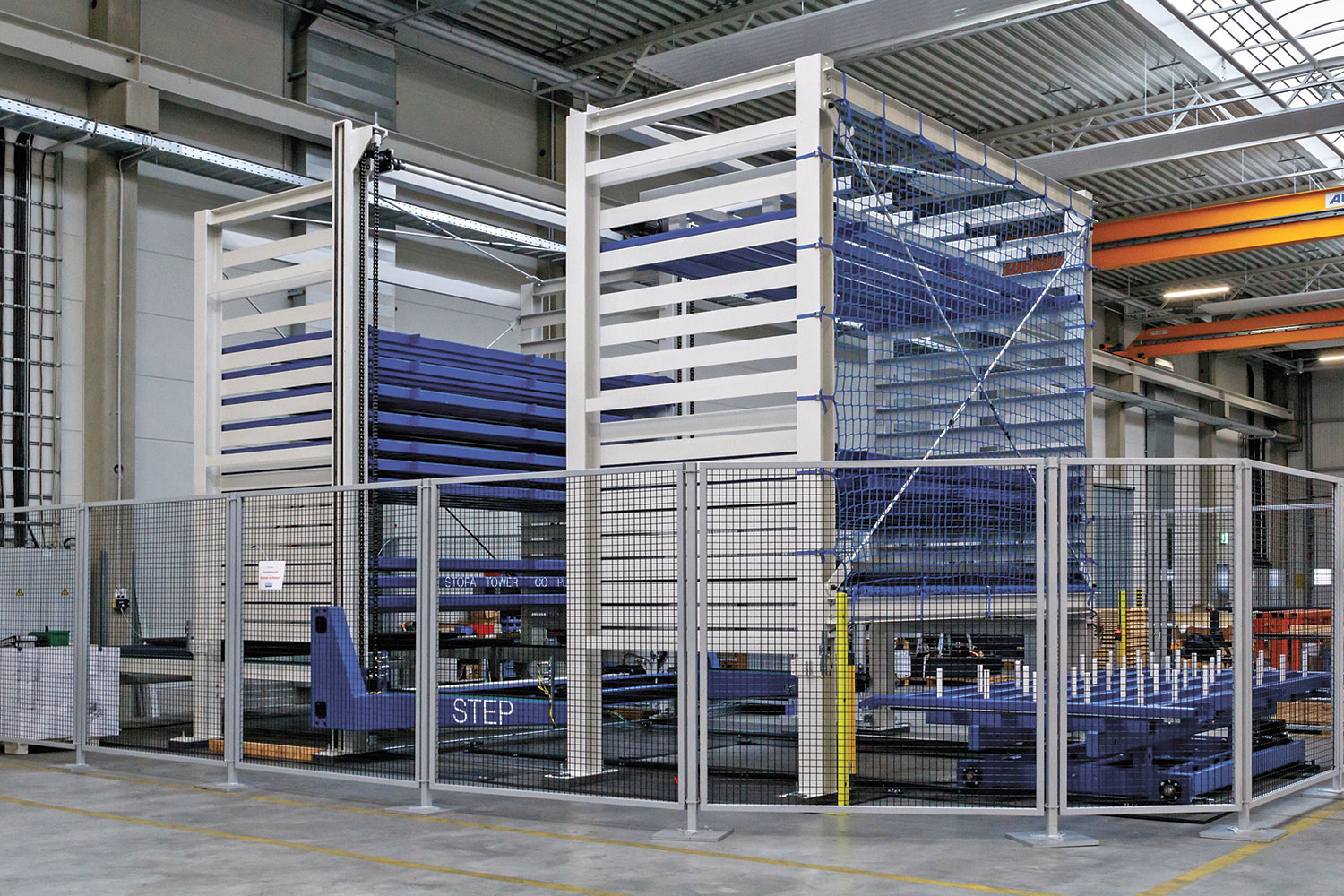

Figure: Example of use of STOPA ECO PLUS as a double tower

STOPA ECO PLUS double tower

Videos

STOPA ECO PLUS 3D Animation

STOPA ECO PLUS Customer Story

STOPA CUSTOM-MADE PRODUCTS

STOPA storage systems are predominantly modular and expandable. This enables individual adaptations to almost any situation. In addition, we work with you to develop special solutions for your specific requirements.
